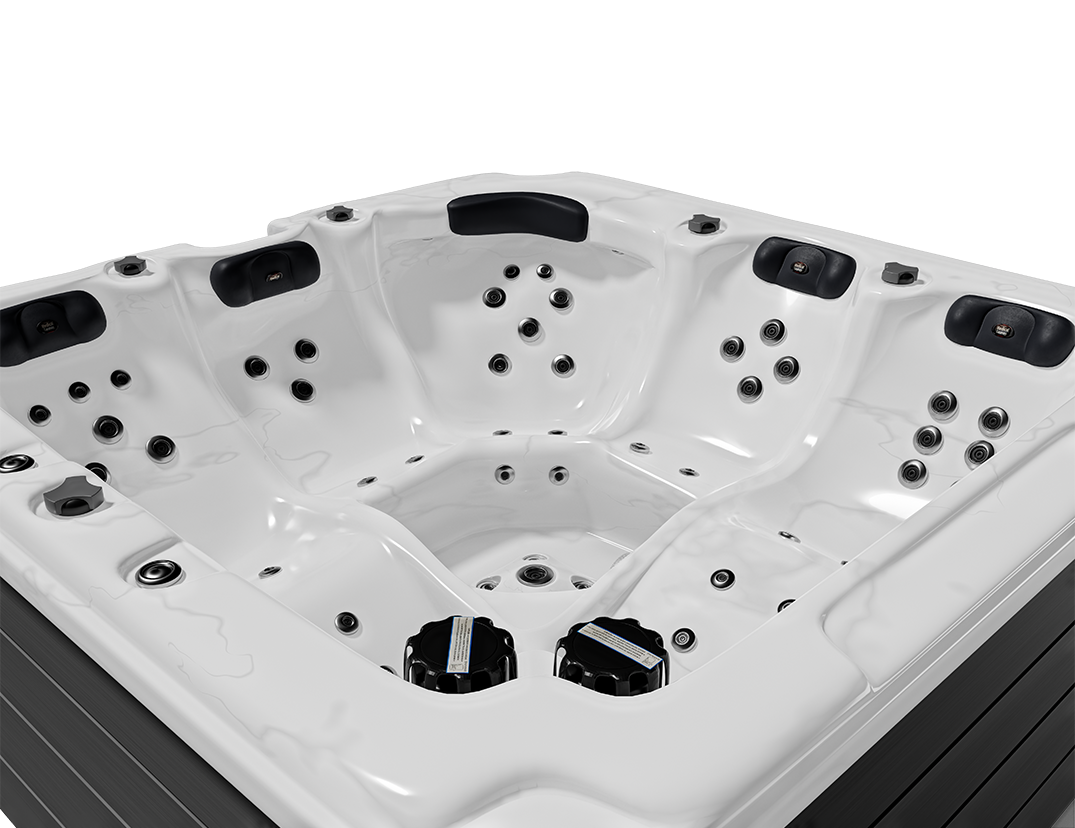

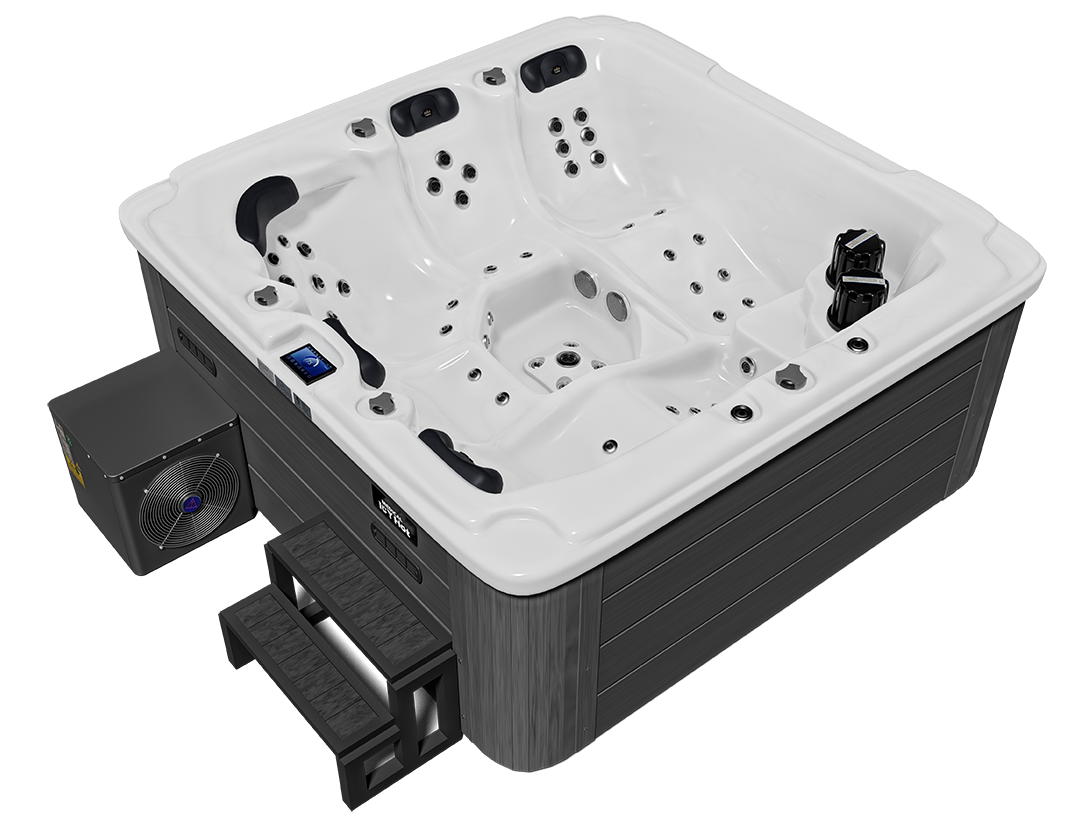

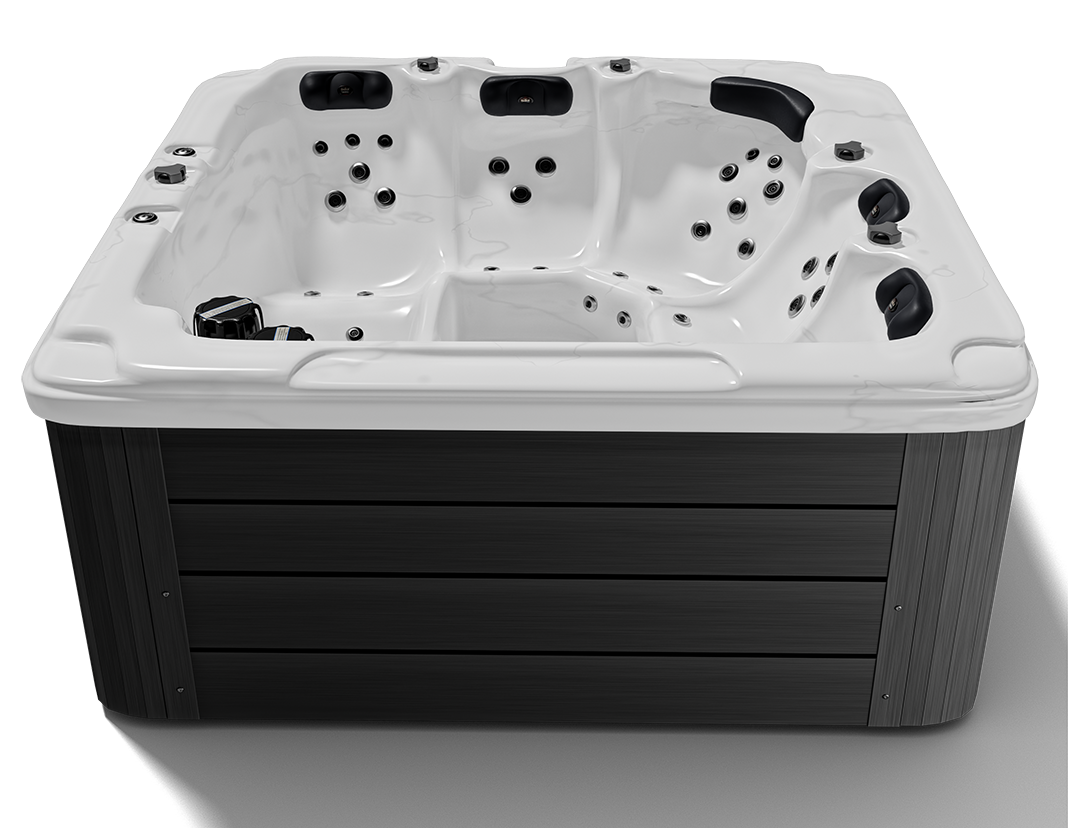

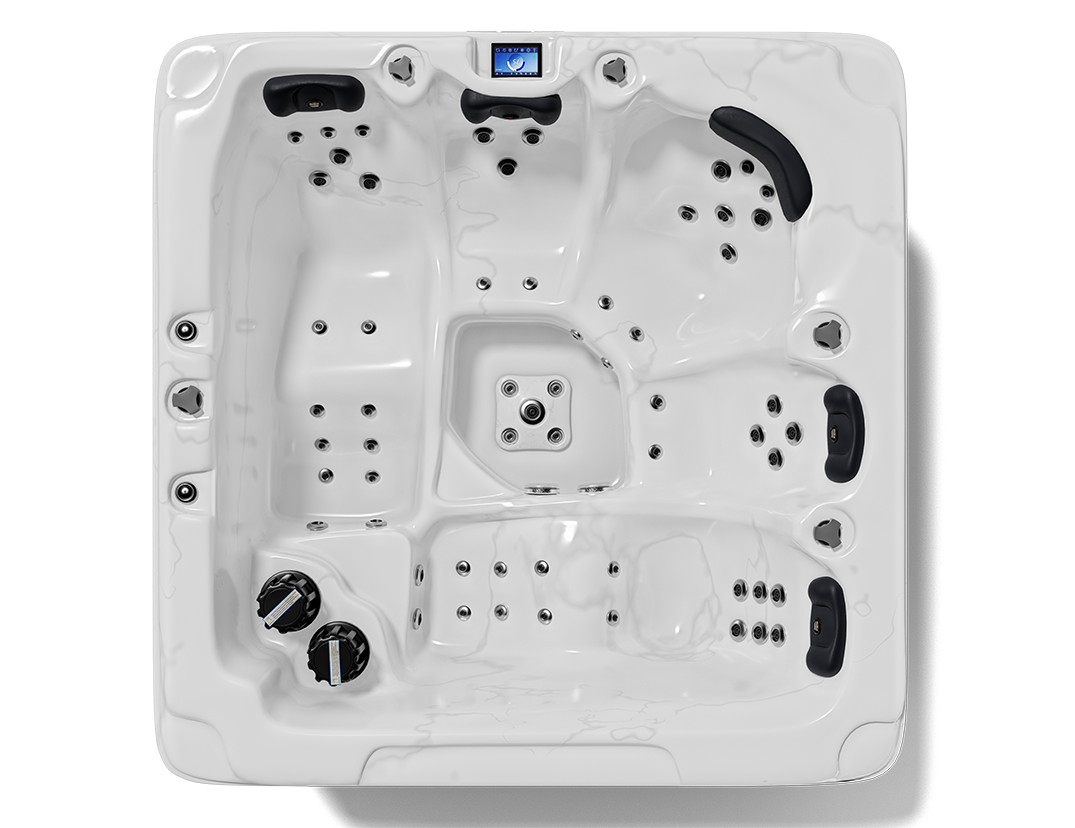

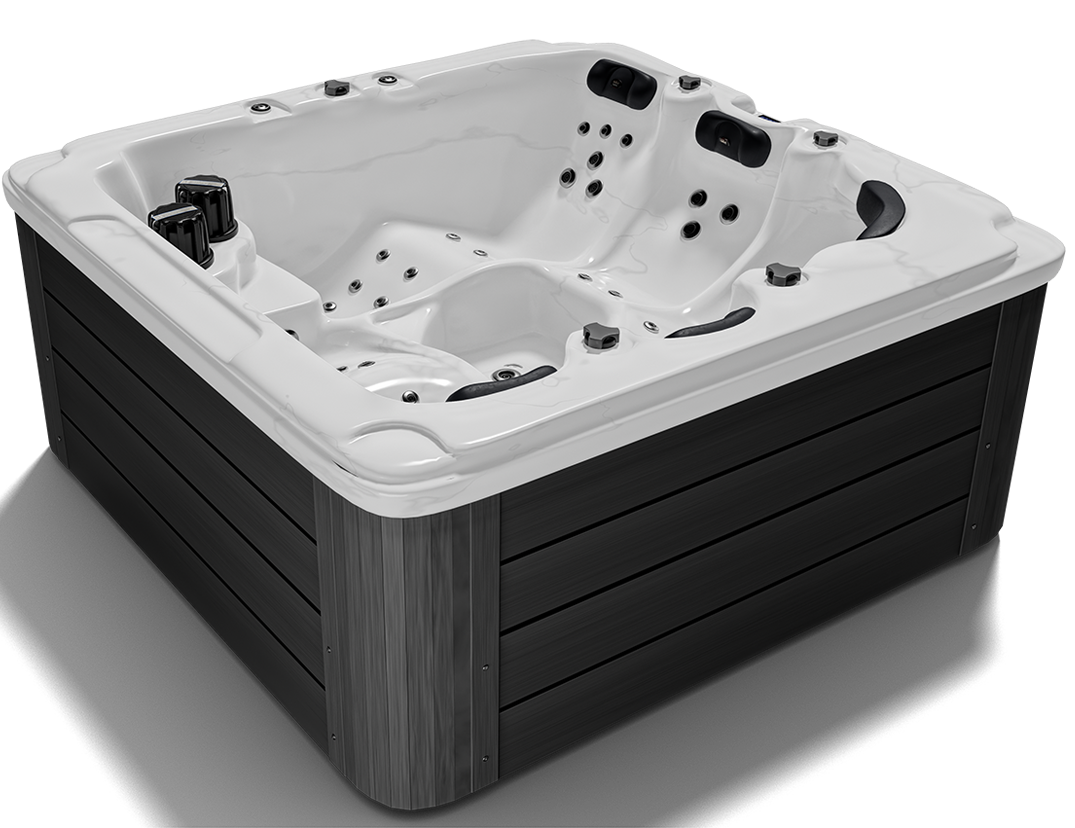

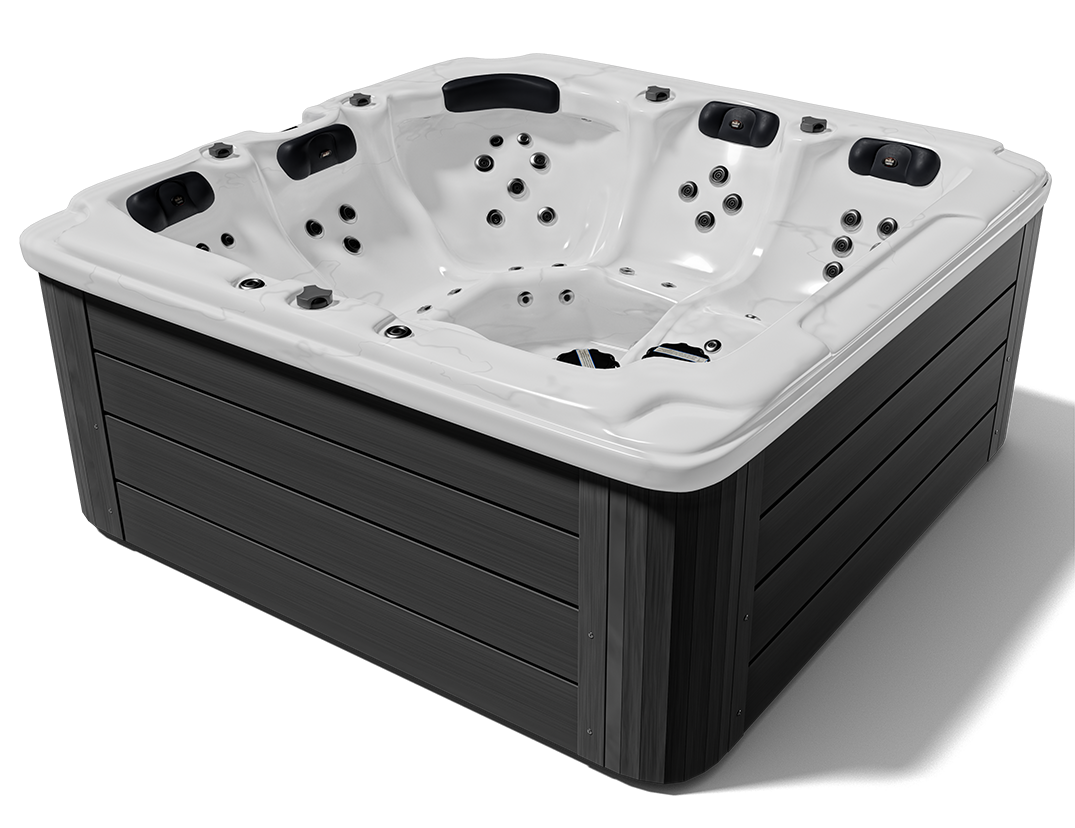

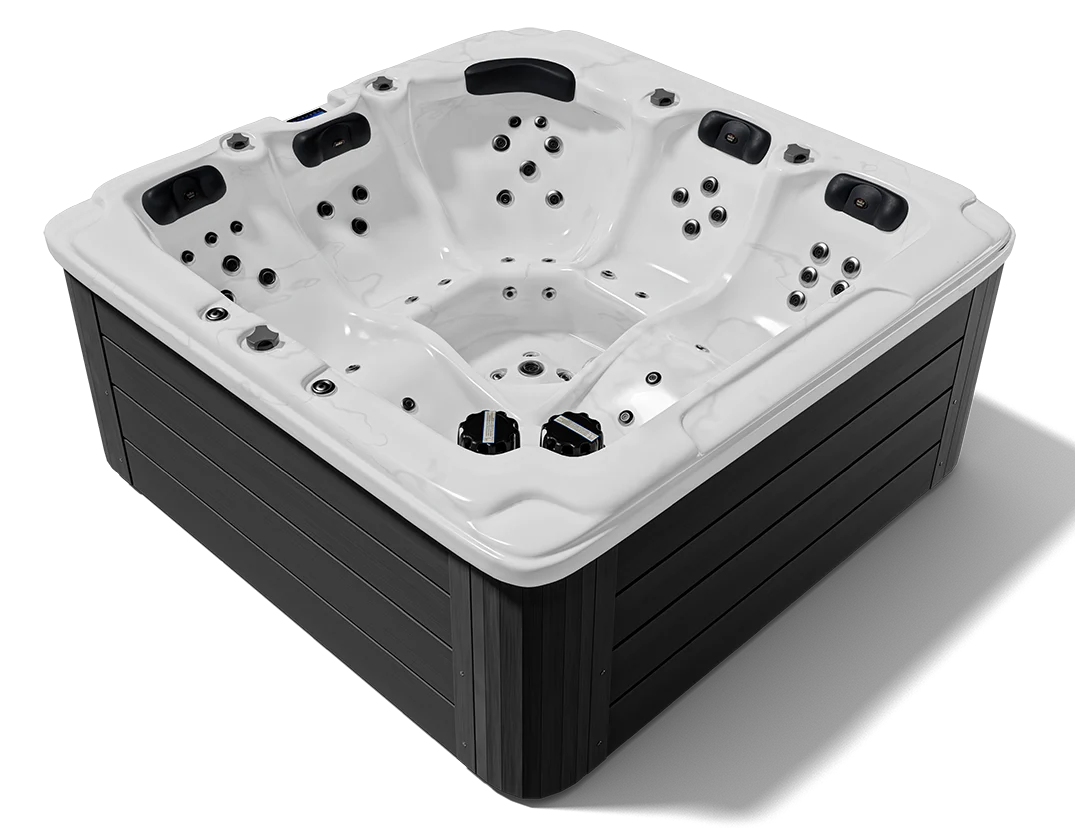

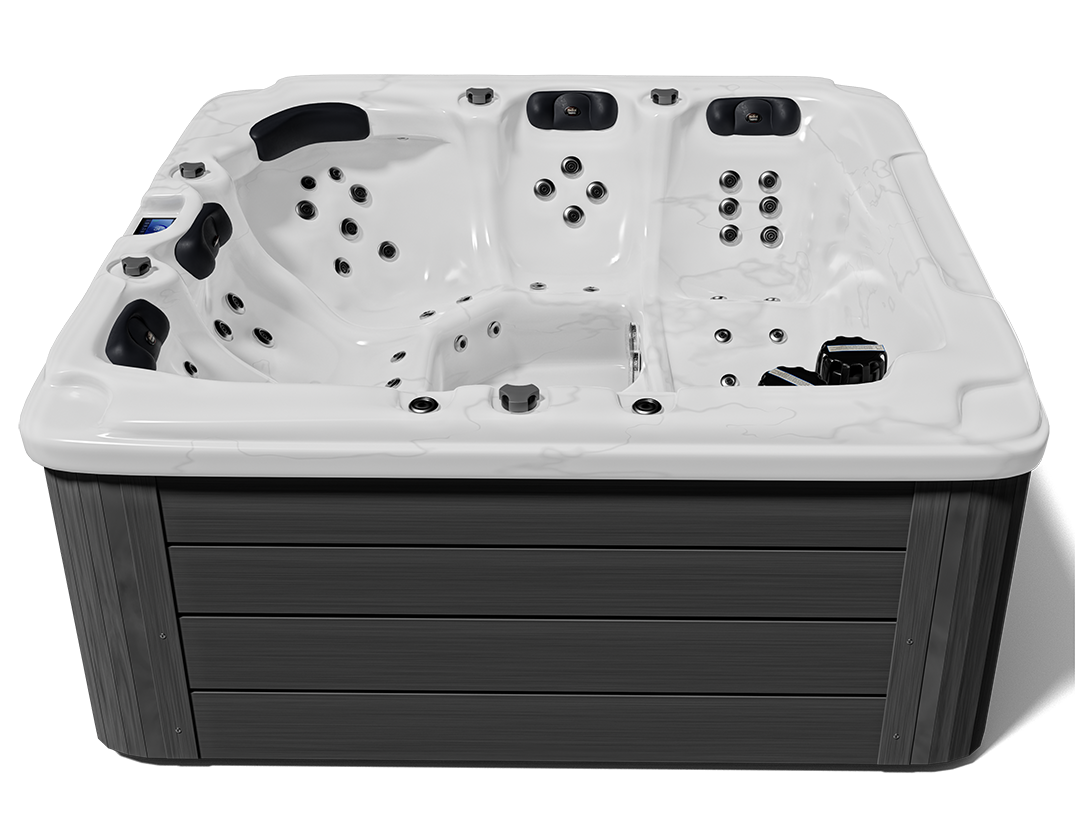

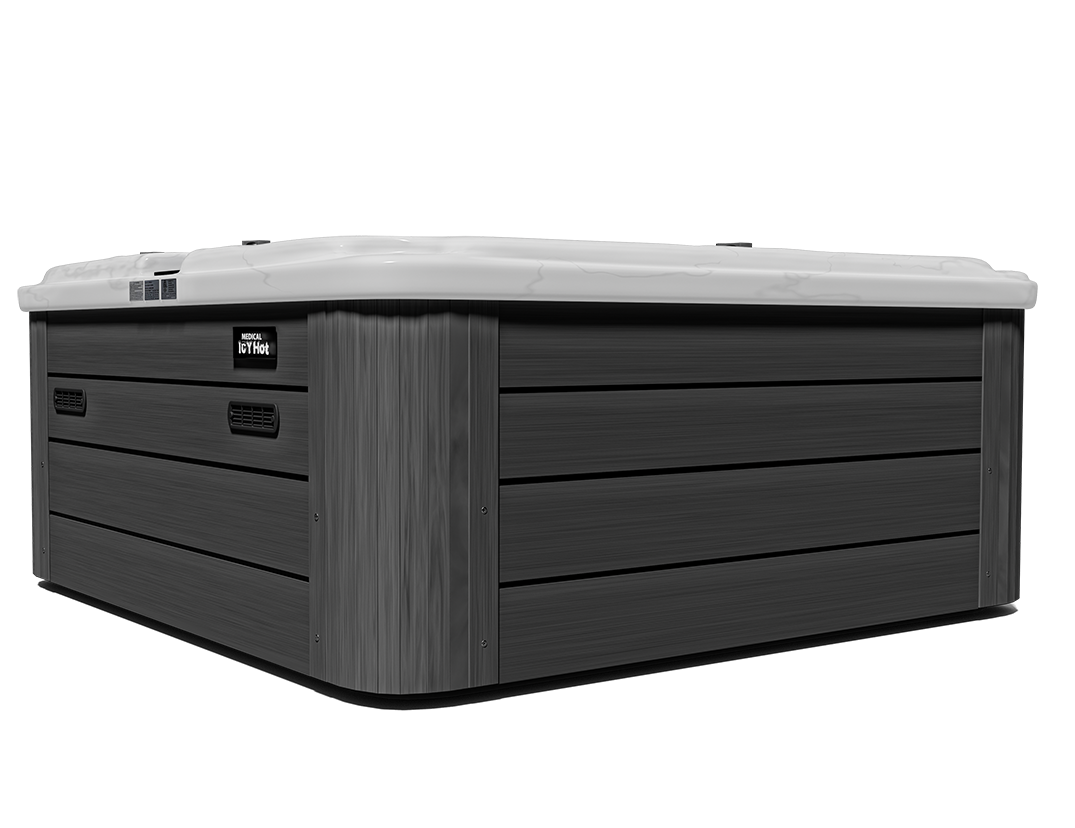

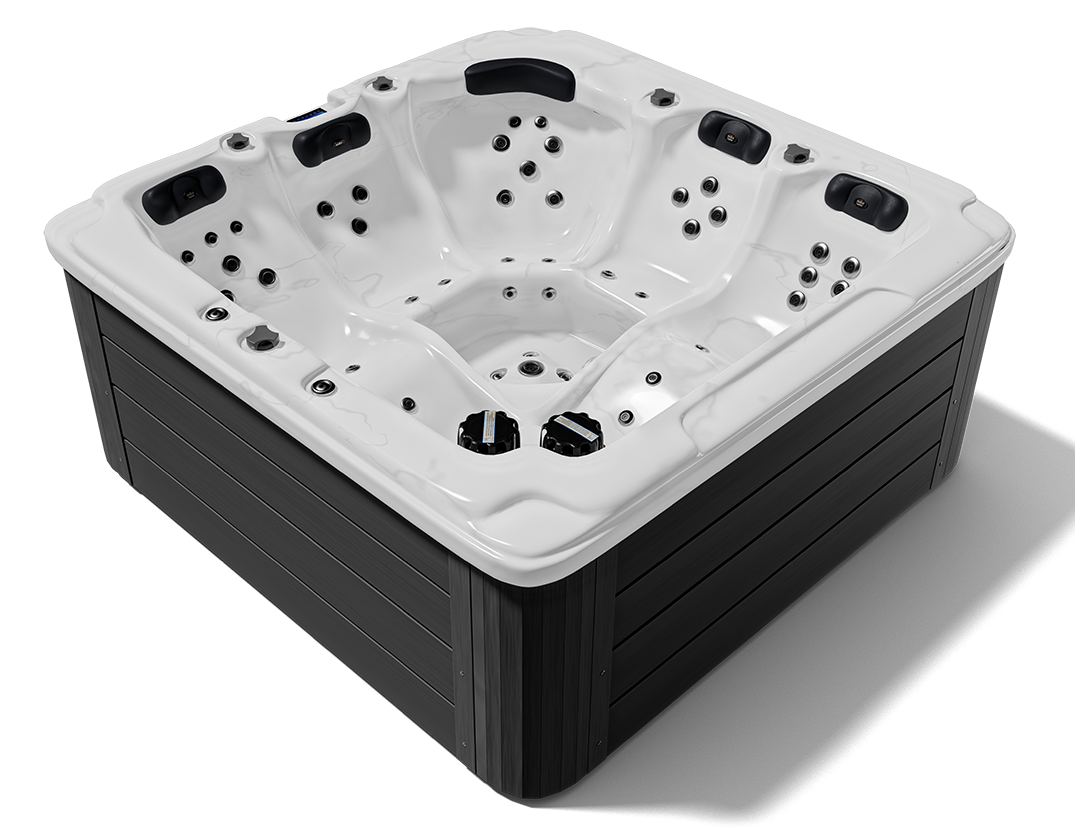

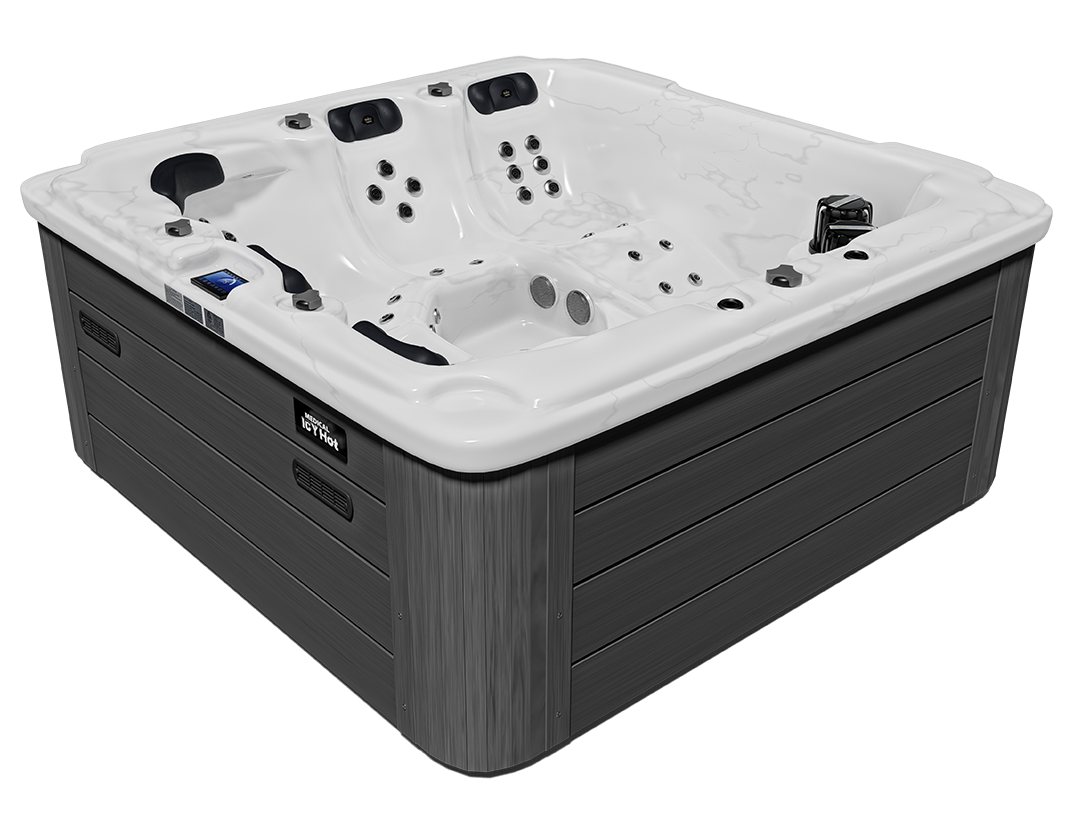

Medical Hot Spring 5™
1224 Reviews
Retail $45,899 Discount: 55% OFF You Save $25,550

Choose a Color:

Black

Brown

Choose:
Indoor
Outdoor
$20,349
Medical Breakthrough - Early Bird Special
or
Shipping calculated at checkout.
Price Increase In:
Days Hrs Min Sec

Over 7000 Bought.

In a Nutshell

Doctor Based - The ONLY sauna designed by doctors. Made to improve blood flow, reduce headaches and migraines, heal your muscles, and achieve absolute pain relief for a better night's sleep.

Fine Print

Limit 2 per customer: Limited quantities available. Any orders greater than 2 will automatically be refunded.

Warranty

All of our saunas come with a 3 year warranty included FREE.

The price is heavily discounted for the month of June. Purchase now while prices are still low. Every 2 weeks the price will increase because our supplies are very limited.  Enjoy the deals and call us at (818) 805-0026 with any questions you may have.

View full details

HANDCRAFT FROM SCRATCH

Comparison Table

custom1 spa custom2 spa custom3 spa custom4-5 spa custom6-9 spa
Model Medical Spring 2™ Medical Spring 3™ Medical Spring 4™ Medical Spring 5™ Medical Spring 7™
Capacity 2 people 3 people 4 people 5 people 7 people
Temperature Range 50-104°F 50-104°F 50-104°F 50-104°F 50-104°F
Number of Jets 49 31 29 65 100
Hybrid Hot + Cold System™ Hot + Cold Hot + Cold Hot + Cold Hot + Cold Hot + Cold
Jet Zone Control™ Basic Basic Advanced Premium Ultimate
Independent Massage Pumps 1 1 1 2 3
Interior LED Lights
Balboa Smart Control Panel™
Heavy Duty Acrylic Shell
UV Water Treatment System
Ozone Water Purification System™
Stainless Steel Jet Trim
Silent 250W Circulation Pump
Auto Air Escape
Anti-Freeze Protection
Water-Shortage Proetection
Fully Adjustable Jets
Dual Filtration Filters
High-Density PU Foam Insulation
ETL Listed & UL-Approved
Maintenance-Free Cabinet
Smart Temperature Control™ -
24/7 Circulation Pump™ -
Clim8zone II Heat Pump Compatibility™ -
Energy Efficient Heating System™ - -
Premium Spa Insulation System™ - -
Enhanced Jet Power™ - -
Commercial-Grade Spa Construction™ - -
Ultimate Performance System™ - -
Precision Massage Zones - - -
Reflexology Foot Therapy - - -
Deep-Tissue Neck & Shoulder Massage - - -
Full-Body Bubble Massage - - -
Custom-Flow Air System - - - -
Chromotherapy LED Lighting - - - -
Reflexology Foot Therapy - - - -
Ultimate Flow System - - - -
Exterior Dimensions (LWH) 76.8 × 55.1 × 29.7" 78.7 × 63.0 × 34.6" 82.7 × 66.9 × 33.5" 86.6 × 86.6 × 37.8" 90.6 × 90.6 × 37.4"
Watts 8,375 W 7,975 W 7,975 W 10,875 W 13,075 W
Operating Voltage 220–240V/60AMP GFCI 220–240V/60AMP GFCI 220–240V/60AMP GFCI 220–240V/60AMP GFCI 220–240V/60AMP GFCI
Required Wire Type Hardwired,6 AWG Copper,90°C rated Hardwired,6 AWG Copper,90°C rated Hardwired,6 AWG Copper,90°C rated Hardwired,6 AWG Copper,90°C rated Hardwired,6 AWG Copper,90°C rated

Designer Showcases













Opencolor photo
Closeblack and white
NO MORE WAITING

Get your Icy Hot Spring 5™ today.

Jump back to the top, pick your Icy Hot Spring 5™, and start feeling better this weekend — deeper sleep, faster recovery, and the contrast therapy your body has been missing. No long wait, no complicated setup.

Buy Now → ↑ Jump back to the top
✓ Free shipping ✓ 0% APR financing available ✓ 30-day money-back guarantee ✓ 5 years warranty included

Technical Specifications

Built different.
Spec'd different.

Every number below reflects a medical engineering decision. When 48 doctors sign off on a spec sheet, the result looks different from what accountants build.

"We reviewed every major hot tub brand's specifications before designing the Icy Hot Spring 5™. Then we built it the way doctors would not the way margins would"

- Medical Saunas Engineering Team
Electrical Requirements
Main Supply:
240V / 60Hz.
Maximum Current:
50A (10,875 Watts).
Breaker Requirement:
60A Maximum Class A GFCI-protected.
Wiring:
4-wire (L1, L2, Neutral, Ground).
Conductors:
Minimum 6 AWG copper, 90°C rated.
Thermal Performance WORLD FIRST
Hot Mode (High):
80°F – 104°F (26.6°C – 40.0°C).
Hot Mode (Low):
50°F – 99°F (10.0°C – 37.2°C).
Cold Mode:
Minimum 50°F (10.0°C).
Temperature Precision:
± 1°F (0.5°C).
Primary Heater:
5.5 kW Balboa unit.
Hybrid Pump:
Compatible with Clim8zone II (4.0 kW heat / 1.6 kW cool).
Jet Configuration
Total Jets:
65 pieces with 304 Stainless Steel trim.
Breakdown:
5" (1), 3.5" (21), 3" (9), 2" (20), 1" circulation (4).
Foot Pod Jets:
10 (integrated air nozzles).
Jet Finish:
304 Stainless Steel.
Adjustability:
Fully adjustable flow via 1/4 turn rotation.
Pumps & Sanitation
Massage Pump 1:
2.2 kW (3 HP class).
Massage Pump 2:
2.2 kW (3 HP class).
Circulation Pump:
250W energy-saving.
Air Blower:
700W.
Filtration:
250W dedicated pump; dual paper filters.
Sanitation:
50mg/h Corona Discharge Ozonizer; integrated injector and mixer.
UV System:
Optional UV-C disinfection.
Structure & Insulation
Shell Insulation:
25mm high-density PU foam.
Cabinet Insulation:
15mm aluminum foil.
Base Pan:
5mm heavy-duty ABS bottom base.
Shell:
8mm USA Aristech Acrylics.
Cabinet:
Maintenance-free PS panels (5 color options).
Cover:
10x6cm tapered insulation cover (8 color options).
Systems & Lighting
Control System:
Balboa BP2000G1 with spaTouch 3 color touchscreen.
Wireless:
bwa™ Wi-Fi module included.
Perimeter Lighting:
24 color-changing LEDs.
Additional Lighting:
5 LED-equipped headrests.
Chromatherapy:
Supports up to 3 independent zones via CHROMAZON3™ logic.
Audio System:
Not installed as standard equipment.
Certifications
System:
ETL Listed (Intertek) for US and Canada.
Components:
UL Approved pumps, heater, and blower.
Water Resistance:
IPX5 (Spa) / IPX4 (Heat Pump).
Regulatory:
FCC Part 15 / Industry Canada RSS compliant Wi-Fi.
